Scrap Hammer Shredder

    The main motor power of scrap hammer shredder(PSX4055) mainly include:315KW-450KW

    PSX4055 The power of other auxiliary motors of the scrap metal shredder is: about 68KW

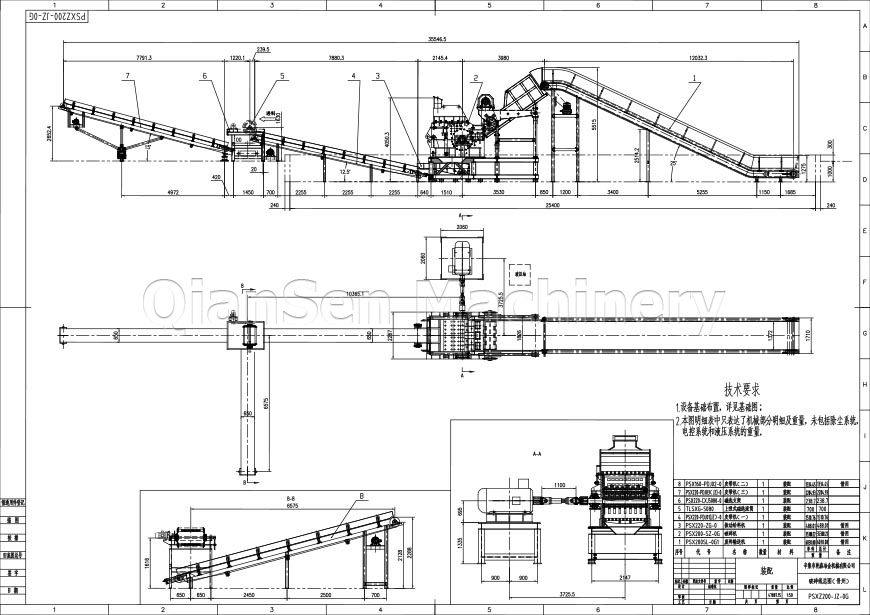

    PSX4055 whole shredder layout length: 36m;

    The widest point of the shredder: 6m;

    The highest point of the shredder:5.5m


 Hammer Shredder

Easy to operate and durable, the Hammer shredderl is one of the most compact pulverizers on the market. This minimizes plant operating costs.

General Features

Easier to manage and maintain

Hydraulic push feed system to automatically control the feeding of the hammer mill

The process can be automatic or remotely controlled by the operator

Pulverizing chamber is constructed of heavy-duty welded steel plate, properly reinforced and stiffened

Three different types of high inertia, long life rotors to meet different requirements

Description.

The shredding chamber is equipped with remotely operated hydraulically operated ejector doors designed to withstand unshreddable material that may be inadvertently fed into the shredder.

Both the shredding chamber and the pusher are covered with high-impact steel liners

The assembly is mounted on a support structure made of sturdy carbon steel profiles and welded to the structural reinforcements

Extractable grid frame to facilitate and speed up grid replacement and all maintenance operations

The hammer mill is also equipped with a removable maintenance platform with integrated hammer pin extractor for easy and quick hammer replacement

Scrap Hammer Shredder

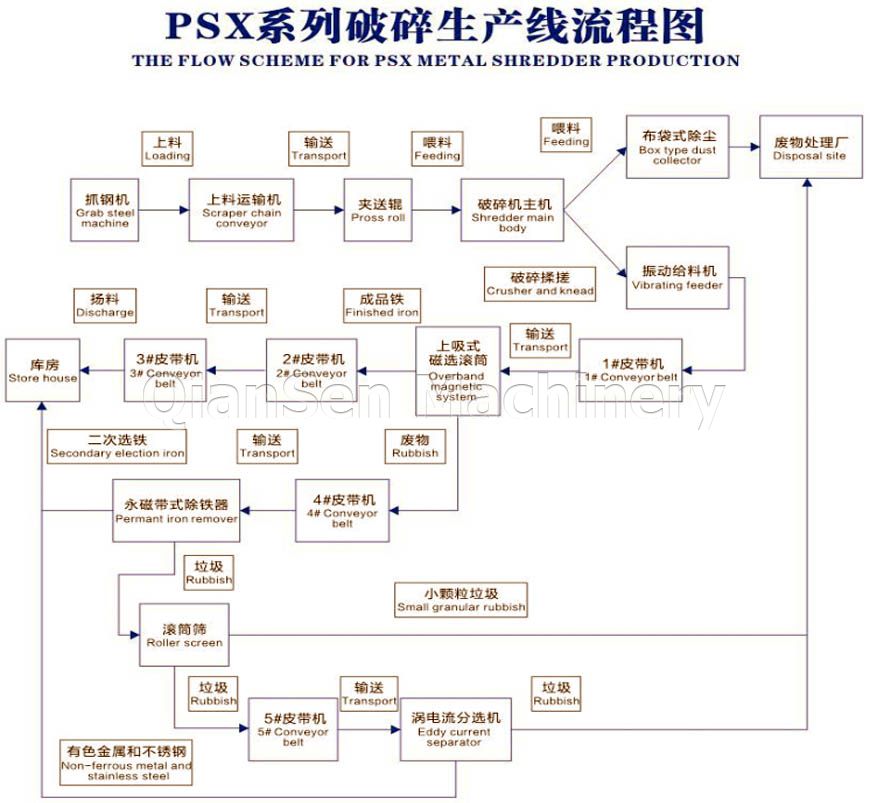

PSX series scrap hammer shredder lines are Suitable for National Circular Economy Park, National Urban Mineral Demonstration Base, Scrap Steel Processing and Distribution Center(base), Steel and Nonferrous Metals Industry, Scrap automobile dismantling and remanufacturing etc. Scrap Automobile Shell. Low-carbon Light Scrap or Mass, Scrap household appliances, etc remove the paint and other impurities through the Shredder System; and then sort out the ferrous metal, non ferrous metals, non-metallic objects through the sorting system; get density about 1.2t / m3 scrap shredder products.

PSX Scrap Shredder Line (315-450)KW


(The equipment can make a turn under the main engine or magnetic separation, etc., and the main engine can partially or all sink underground, the specific situation shall be designed and arranged by our engineers according to the actual situation of the customer)


PSX Scrap Shredder Line

The shredder is designed to shred a wide variety of light and thin materials as discarded automobiles,tin plate,household appliances,bicycles,empty cans,etc.making the materials into pure charge for steel making,By smashing and compressing,the shredder will remove the impurities,raise density,lower transporting and smelting cost to offer good furnace charge for steel plant.

The machine is able to shred:

①Whole or flattened car bodies(without tires,fuel/gas tanks,);

②Tin plate material;

③Electrical appliances(without motor,compressor,axles);

④Bicycles & similar materials;

⑤Empty tanks(without liquid materials & as painting,etc.);

⑥Other scraps suitable for shredding.

Scrap Hammer Shredder

Features

1.Equipped with cooling spray, dust spray, noise spray system etc to achieve the project’s environmental requirements.

2.Equipped with can be network all-round video surveillance system,automated integrated control system,remote operation and maintenance system to achieve the production of safe and efficient demand.

3.The core structure of the device has the unique advantage of independent design, and has obtained a number of patented technologies. Daily loss parts provide customers with original parts and processing drawings, convenient for customers to choose, the equipment accessories has good versatility, easy maintenance.

4.The preloaded roller is driven by a large torque hydraulic motor or motor reducer according to customer demand, with high working efficiency; chain plate feeding or crawler type transmission structure, more stable transmission, more energy saving.

Scrap Hammer Shredder

Advantages of crushing material:

1 Uniform size can achieve continuous feeding.

2 High effluent rate, low impurity rate and reduced air pollution.

3 Stabilize the chemical composition of the steel water.

4 Lower content of phosphorus and sulfur in steel water.

5 When mixing with other waste steel, the broken steel can fill the gap and increase the additive density.

6 The electrode damage decreases during smelting.

7 During smelting, the furnace is evenly heated and the life of the furnace is extended.

8 High melting efficiency, which can be effective and energy saving.

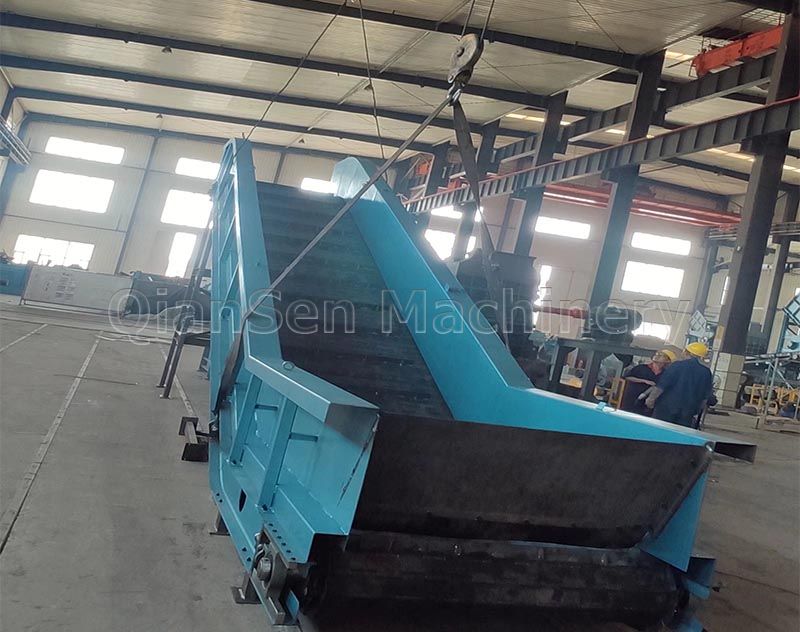

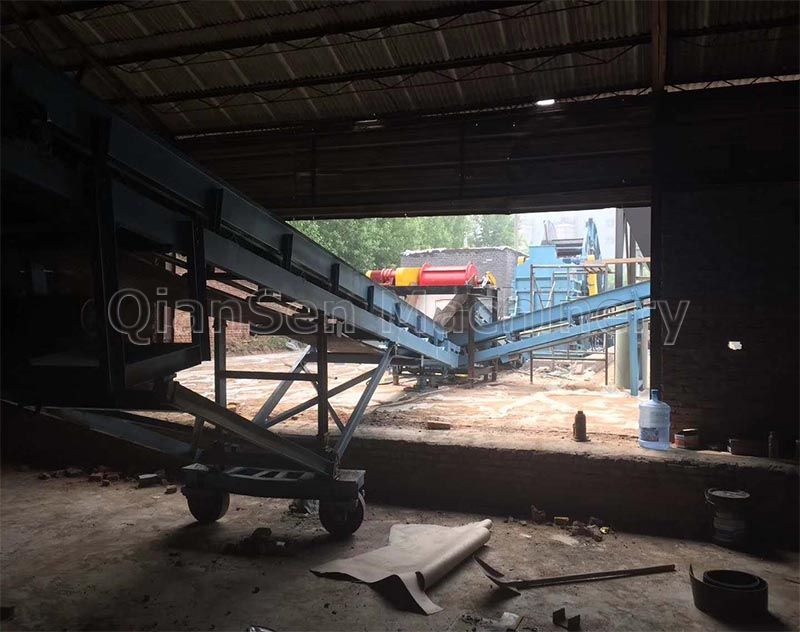

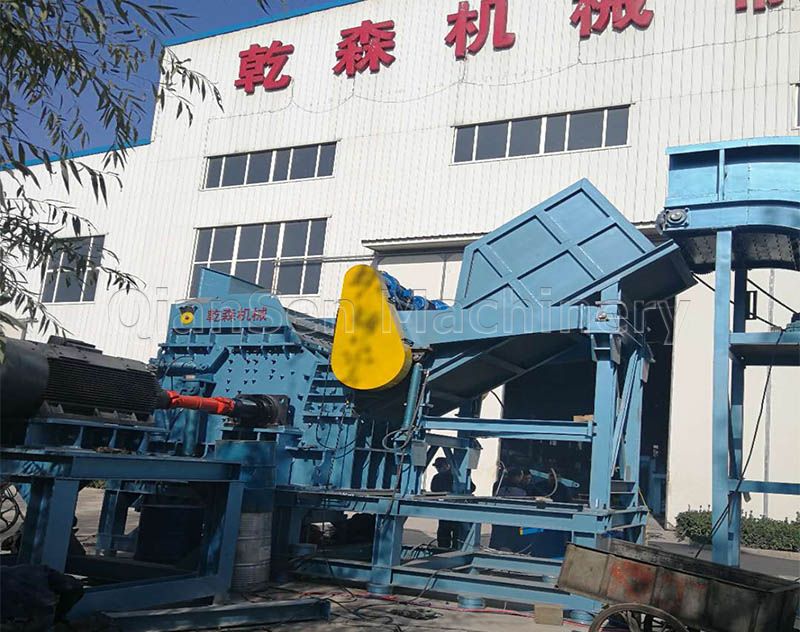

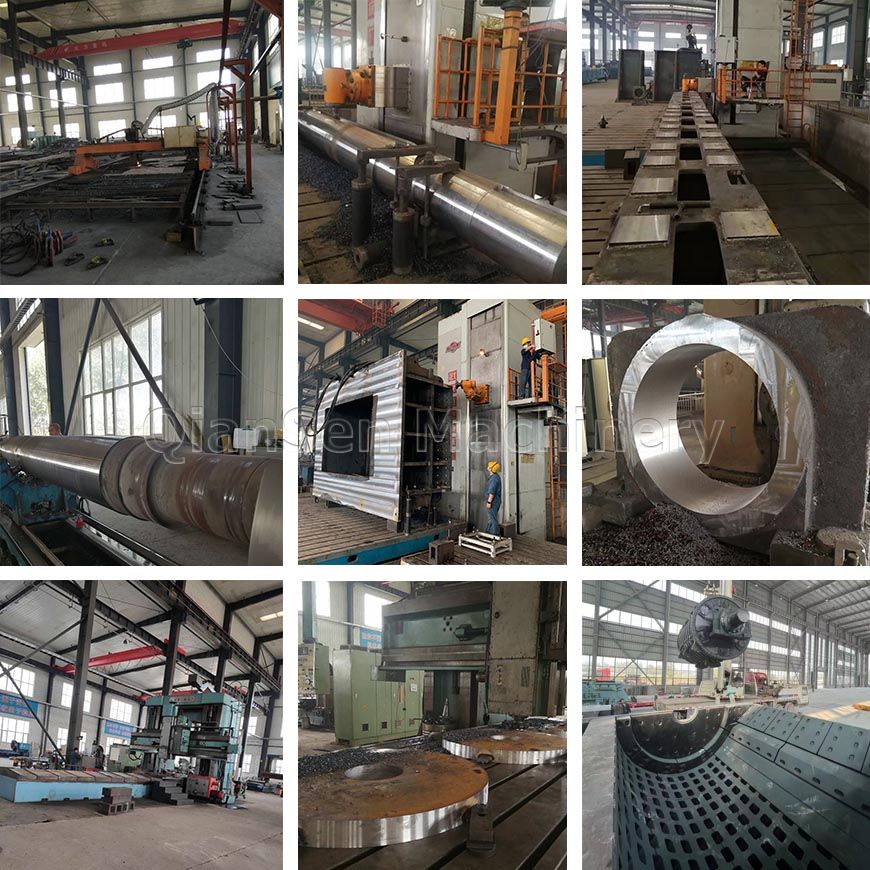

  • Scrap Hammer Shredder workshop production site:

Scrap Hammer Shredder

About Installation debugging and staff operation training:

A.we will guide your engineer through the whole installation and debugging process by phone or video;It is free of charge.

B.If you need our staff to go to your site to install, is charged.

After-sales service commitment:

1. Our company implements tracking service for products. Pre-sale, sale and after-sales service for customers.

Pre-sales: guidance on equipment layout and equipment foundation;

On sales: guidance on the production, delivery, installation and commissioning technical services of the equipment;

After-sales: Customer daily maintenance, safety production and other services to ensure the normal operation of the equipment.

2.The warranty period for the equipment is 18 months after the arrival of the goods or 12 months after the acceptance (whichever comes first). During the warranty period, the user's fault feedback will be answered within 4 hours.Within China arrived at the customer site within eight hours, other countries to arrive at the customer site within 72 hours.

A.We will send you the spare parts by free if the problems caused by us.
B.If it is the men-made problems,we also send the spare parts,however it is charged.

C.About the purchased parts,Such like:Siemens(motor),SKF(bearing),Rexroth,They are multinational company, and they will have after-sale service points in your local , So you can enjoy global warranty service.

D.The daily loss of equipment provides customers with original parts and processing drawings, which is convenient for customers to choose.

Scrap Hammer Shredder

Scrap Hammer Shredder

Xinji Qiansen Machinery has all kinds of CNC large processing equipment and welding equipment more than 100 sets, is an integrated CNC blanking, welding, machine tool processing, assembly and debugging as one of the comprehensive machinery manufacturing enterprises. The company was formerly a large metallurgical equipment manufacturing enterprise, with strong technical base, processing capacity, perfect R & D, manufacturing, sales team, since 2000 combined with the United States, Germany, Japan and other national technology committed to R & D, manufacturing scrap processing equipment, and successfully produced 160 horsepower - 10,000 horsepower scrap crushing production line, the company has been Hebei Iron and Steel Group stone home Zhuang Iron and Steel Co., LTD., Tangshan Jinma Iron and Steel Group Co., LTD., Wu 'an Xinghua Iron and Steel Company and the national scrap processing base, etc., provide more than 100 scrap crushing production lines with high quality, high efficiency and reliable performance. At the same time, we also design perfect dismantling and crushing schemes for scrapped motor vehicles, special crusher for machine aluminum, broken bridge aluminum and daily miscellaneous aluminum, nonferrous sorting equipment and layout scheme for customers. LX-75 filter crusher, fire iron crusher, ZT-45 paper crusher, etc., all the time, dry Sen machinery continues to strengthen the quality control concept, has obtained ISO9001 quality management system certification, ISO14001 Environmental Management system certification certificate,ISO45001 Occupational Health and safety management system certification certificate.

RFQ:

1.Are you trading company or manufacturer?

We are the manufacturer, and We guarantee that under the premise of the same technical parameters and quality, we provide the most appropriate price.

2.How long is the delivery time?

For standard machines, it would be about 30 days; For non-standard machines and customized machines according to clients specific requirements, it would be about 45 days.

3.How to pay to you ?

We can negotiate about payment. Generally speaking, our practice is:T/T in advance. We can accept 30% deposit , and balance paid to us before delivery.

4.Where is your factory located? How can we visit there?

Our factory is located in Xinji City, Hebei Province, China, you can fly to Shijiazhuang Zhengding international airport or Beijing Capital International Airport or Shanghai Pudong International Airport,then we pick you by car.Welcome to our factory at any time.

5.How does your factory do regarding quality control?

we are the manufacturer of this kind of shredder for more than 10 years,our customers all over the world, we have rich experience on production and R&D,: All products have to pass strict inspection before delivery. We have gained ISO9001:2008 authentication and Eu CE certification,if you need other certificate and quality control,please contact us.

6.Do you have inspection procedures for machines?

100% self-inspection before packing

7.All products can be customized?

All products can be customized by our team of professional designers.

8. How can i get the after-service?

A. We provide one year guarantee and lifelong maintenance.

B.We will send you the spare parts by free if the problems caused by us.

C.If it is the men-made problems,we also send the spare parts,however it is charged.

D. Any problem, you can call us directly.Anna:86 15930888103(WhatsApp/Wechat)

Scrap Hammer Shredder

ModelType of main engineFeed Opening Width(mm)Main Motor Power(KW/HP)Feed Quantity(T/H)
PSX-220PSJ40551400220KW/300HP4-6 tons/hour
PSX-315PSJ40551400315KW/430HP5-7 tons/hour
PSX-350PSJ48551400350KW/480HP6-8 tons/hour
PSX-450PSJ48551400450KW/610HP7-9 tons/hour
