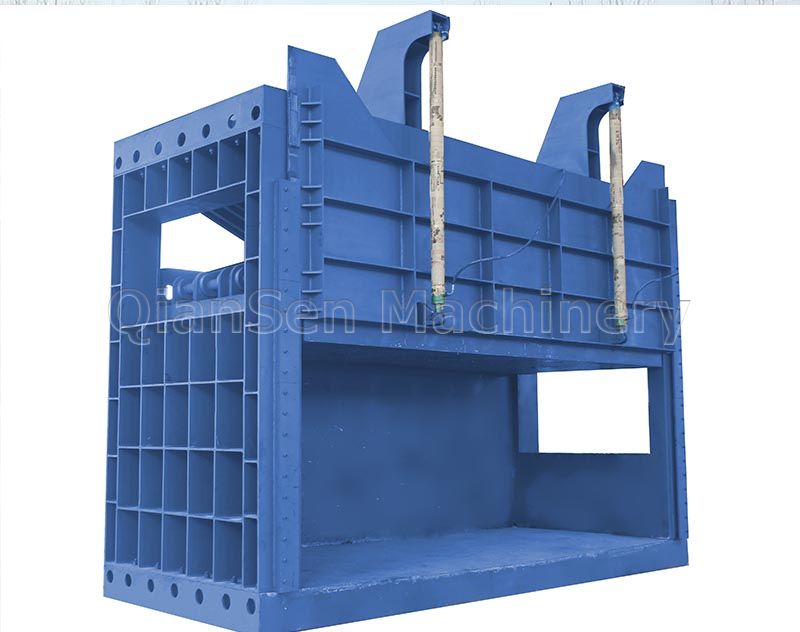

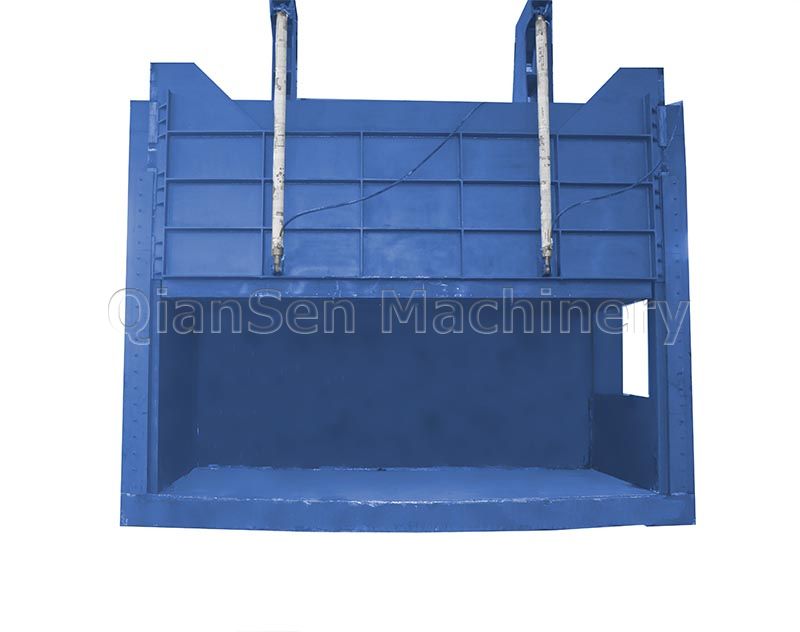

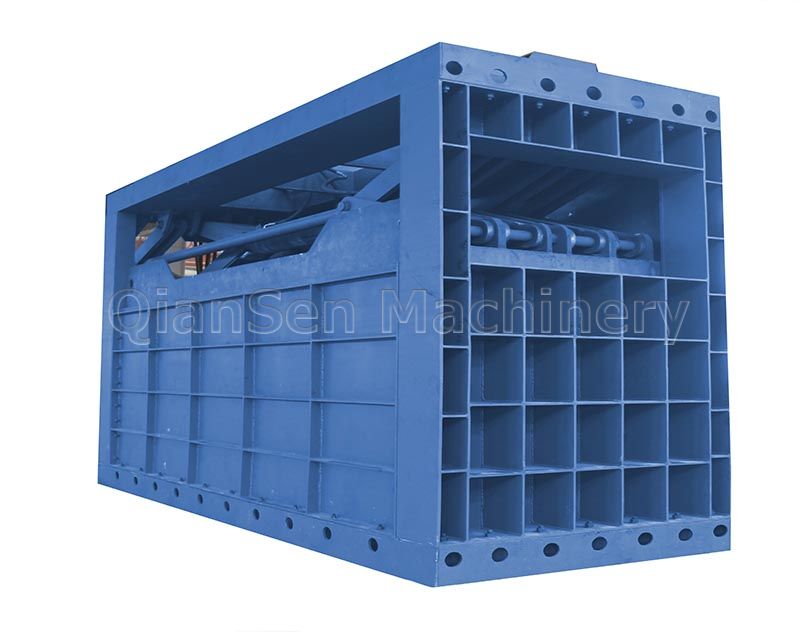

Scrap Car Flattening Machine

Scrap Car Shredder

In scrap metal recycling, metal shredders are used to reduce the size of metal scrap. The use of metal shredders is an efficient way to process scrap for high value.

At Qiansen, we build complete shredding systems for a wide range of metal scrap, such as LMS (Light Melt Scrap), Body Scrap, Medium Commercial Scrap (Bicycles, Rickshaw Bodies, White Goods), and more. Depending on the space available to the customer, we can build single line, C-shaped or L-shaped shredding systems. We build shredding systems with a capacity of 10 tons per hour.

Our goal is to provide our customers with cost-effective and technologically advanced solutions. The shredders we build are easy to operate. They can be operated automatically via PLC or electronic control panels. They have a long service life and low maintenance requirements, have an oil lubrication system to minimize wear and have reversing systems for overload and emergency functions to ensure safety.

Our complete shredding systems typically include

Infeed conveyor Receives scrap metal and places it into a pre-shredder.

Pre-shredder Includes a rotary shear (twin shaft shear) that cuts and crushes large quantities of light metal scrap (e.g., car bodies, rollers, white goods bodies, etc.) into smaller pieces. It has two rotors driven by a motor and gearbox that can withstand abnormal load conditions and pre-crushing without making noticeable noise or polluting the air.

An infeed conveyor from the main crusher transports the pre-crushed scrap to the main crusher. Smaller scrap does not require pre-crushing and can be fed directly through this conveyor.

The main shredder then shreds the scrap and turns it into a fine, dense scrap. The Main Shredder is a robust hammer shredder with heavy duty bearings and housing.

Outfeed Conveyor Conveys shredded scrap to a metal separation conveyor.

Non-Ferrous Separation Conveyor Separates non-ferrous metals from the product stream using magnetic separation.

Vibrating Screen Removes dust and other smaller unwanted materials (e.g., plastics, wood, etc.) from process scrap.

The well-designed electrical control panel features MCBs, safety devices, overload functions and relays. In the event of an emergency, you can stop the entire system using the emergency stop provided at both locations.

Optional oil lubrication system and cooling system are available.

We are large scale waste car shell shredder manufacturers and suppliers, and can offer our customers products with factory price, high quality and best after-sale service. Welcome to visit our factory!

Design characteristics

1. The main frame is welded with high quality alloy structure steel, neat and beautiful structure, rigid and easy to dismantle.

2. The lowering parts use cylinder drive linkage mechanism, and with synchronous device, good stability.At the same time, compared with the ordinary press, our products greatly reduce the height of the equipment, make the whole machine more compact .

3.YB5220B and YB5215 two series with width extrusion and discharging device, make more convenient operation, controllable feeding width, wider range of crusher.

4. With front and rear protection doors, the use of safety is better, hydraulic system, using the bypass booster design, low pressure high flow oil supply and high pressure booster force automatic switching, improve the running speed of the equipment, while reducing the energy consumption of the equipment.

5. The hydraulic valve adopts Beijing Ward products, with more reliable performance.Electrical control has automatic and manual operation mode, easy to use and maintenance.The operation process is local and remote, can operate in both places, more flexibility.

Application

Scrap car shredder is suitable for crushing scrap car shell, scrap bicycle, scrap motorcycle, car cab, car door, file cabinet, car sheet metal, car water tank, car bumper, water tank, scrap steel, scrap steel furniture and all kinds of scrap metal. The output size can be adjusted according to user requirements.
